III Phase 660v ac coegi VFD

WCE scriptor SKK300 series agites sunt altus-perficientur, multi-muneris agitet disposito pro industriae automation, late in fans, soleatus, traueor balteos, et alias apparatu. Core adoptat Advanced vector imperium technology, quod habet proprietates of princeps celeritas ordinacione praecisione, industria salute et alta efficientiam, firmum operationem, etc., et non occurrit necessitatibus variis industriae missionibus. Nos quoque factum consuetudo solutions pro mobile crusher inverter control cabinets, quae operari perfecte in multis locis per regionem suam.

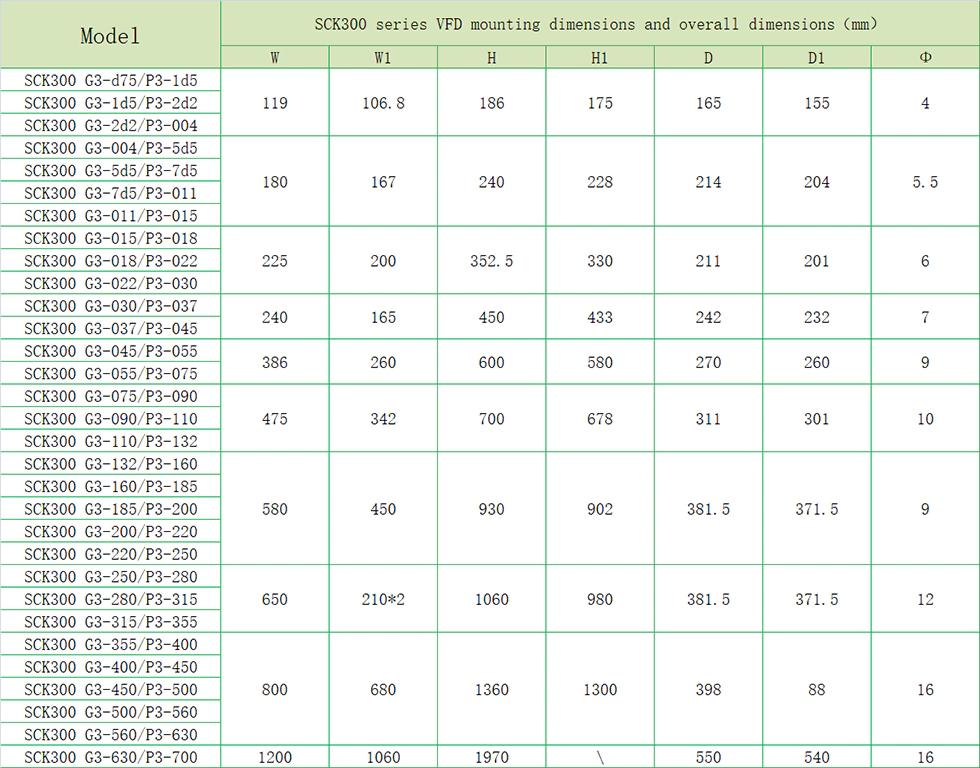

Product Parameter (Specification)

Productum pluma

● I / o features

◆ Input intentione range: 220v / 380v / 660v ± XV%

◆ initus frequency range: XLVII ~ 63hz

◆ output intentione range: 0 ~ rated input intentione

Output frequency range: 0 ~ 400Hz

● Functionalis features

◆ Frequency occasum modus: digital occasum Analog occasus, Serial communicationis occasum, multi-celeritate, PID occasum, etc.

◆ PID control munus

◆ MULTI-celeritas imperium munus: XVI celeritate imperium

◆ OSCILLATIO Frequency Imperium

◆ Instantaneous defectum sine fine munus

◆ Velox / Jog Key munus: multi-function brevis key gratis defined a users

◆ Automatic intentione temperatio munus: cum potentia velit intentione mutationes, potest statim ut in output intentione constans

◆ Provide usque ad XXV species de culpa munera munera: super current, in voltage, in voltage, super temperatus, tempus damnum, o culteribus et alia praesidio munera

● periphericis interface features

◆ Programmable Digital input: VIII Input

◆ Programmable Analog input: AI1: 0 ~ 10v input, Ai2: 0 ~ 10v aut 0 ~ 20MA input

◆ Open COACTOR output, I output

◆ Relay output: II outputs

◆ Analog output, II outputs, 0/4 ~ 20MA aut 0 ~ 10v respectively

● Technical perficientur characteres

◆ Imperium Modus: Non PG Vector Imperium, V / F Imperium, Torque Imperium.

◆ Omindo facultatem: CL% rated current 60s; CLXXX% rated current 10s

◆ incipiens Torque: Non PG Vector Imperium: 0.5Hz / CL% (SVC)

◆ Volo Ratio: Non PG Vector Imperium: I, C

Product Application

Products potest esse in metalla, fans, pumps, novum navitas apparatu et aliis occasionibus.

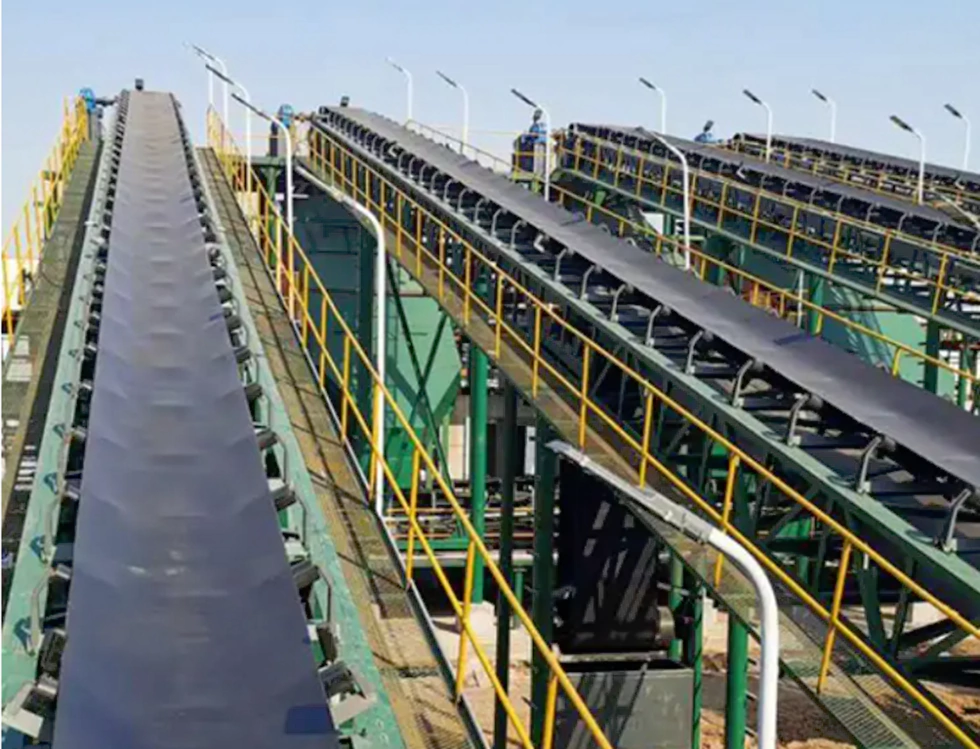

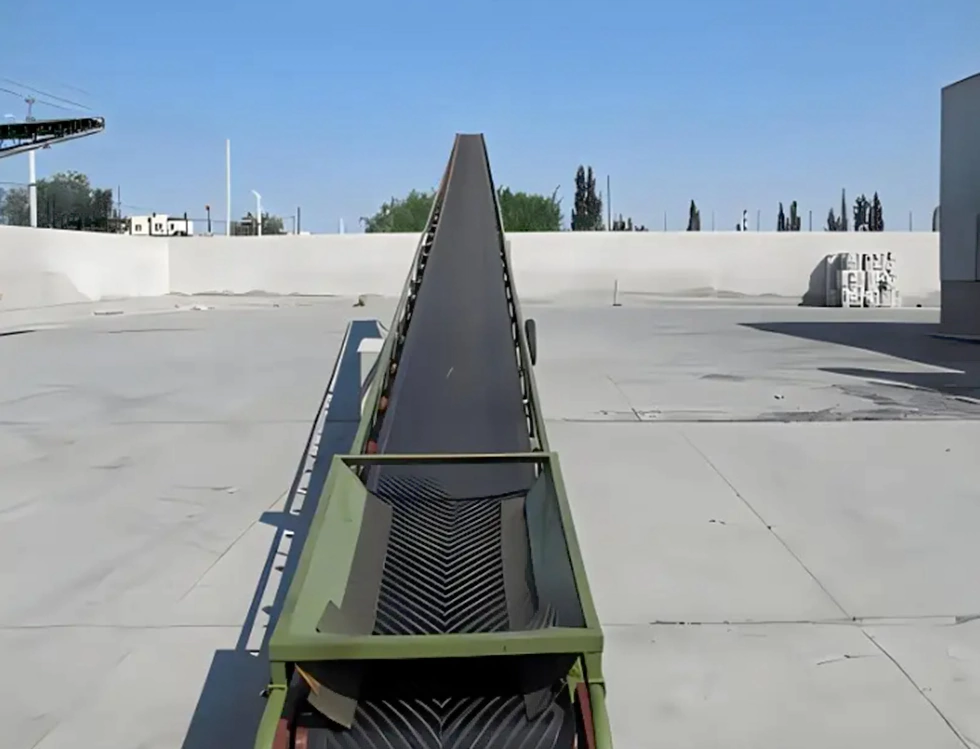

TRADUCTOR balteus, onerariis bonis

In applicationem frequency converter in TRADUCTOR ratio est unus ex key technologiae ad consequi efficient et accurate materia tradenda et diribitio

I. Multi celeritas materia tradenda

Sem, transferre packages de diversis magnitudinis / pondera in logistics CELLA

Intellexit:

Tullius sets of celeritate parametri (ut 30hz / 50Hz / 80hz) sunt, et switched a PLC vel HMI.

Combined cum photoelectric sensorem ad deprehendere sarcina mole, automatically par celeritas (magna-low-celeritas anti-lapsus, parva summus celeritate efficientiam).

II. CIRCUMECTAE CIRCUMSPECTATIONIBUS et Sorting

Missario: et Express Sorting Center Diverts parceles a destination

Intellexit:

Linguae Feedback + Inverter clausit-loop imperium, positioning accurate usque ad ± 1mm.

Cum ad sarcina advenit ad genus portum, in inverter performs fixum subsisto (DC braking + nulla celeritate votis) in conjunction cum ventilabis virga / robotic brachium.

III. Synchroni collaborative imperium

Sem, multi-segmentis TRADUCTOR balteus Nullam traductionem

Intellexit:

Magister / Servus Imperium Modus: Magister frequency Converter Mittit frequency instructiones, et servus apparatus synchrede sequitur per modbum / canopen.

Caesar control: A tergo TRADUCTOR est V% citius quam fronte, vitando cumulus items.

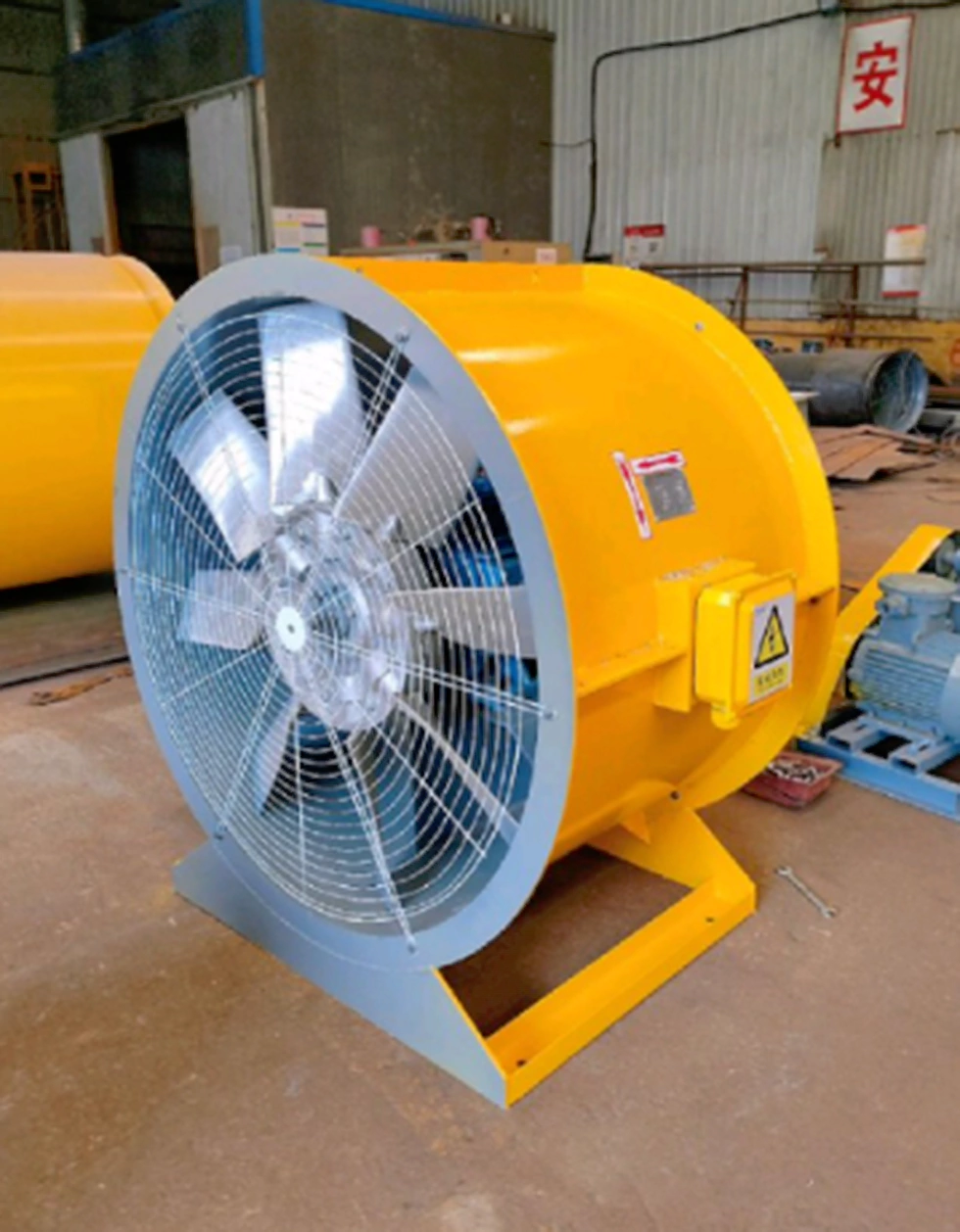

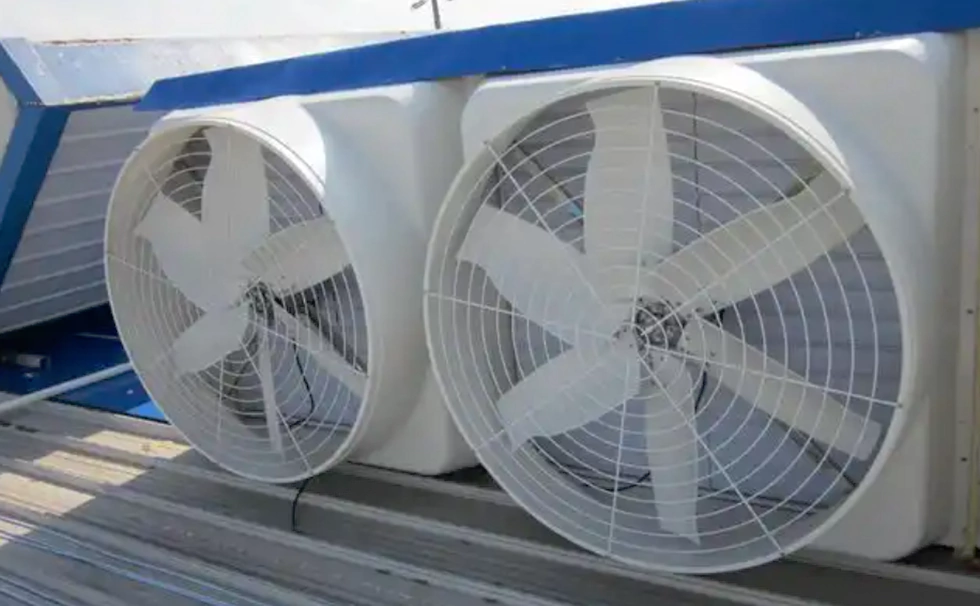

Fans

Et applicationem frequency converter in agro fans non tantum valde reducit industria consummatio, sed etiam amplio ratio accuratam et automation gradu per intelligentes imperium. WCE scriptor Sk300 serie, cum suis princeps compatibility et industria salute algorithms, can operiet diverse necessitates parva ventilators ad magna industriae fans, auxilio societates consequi viridi et efficiens productio.

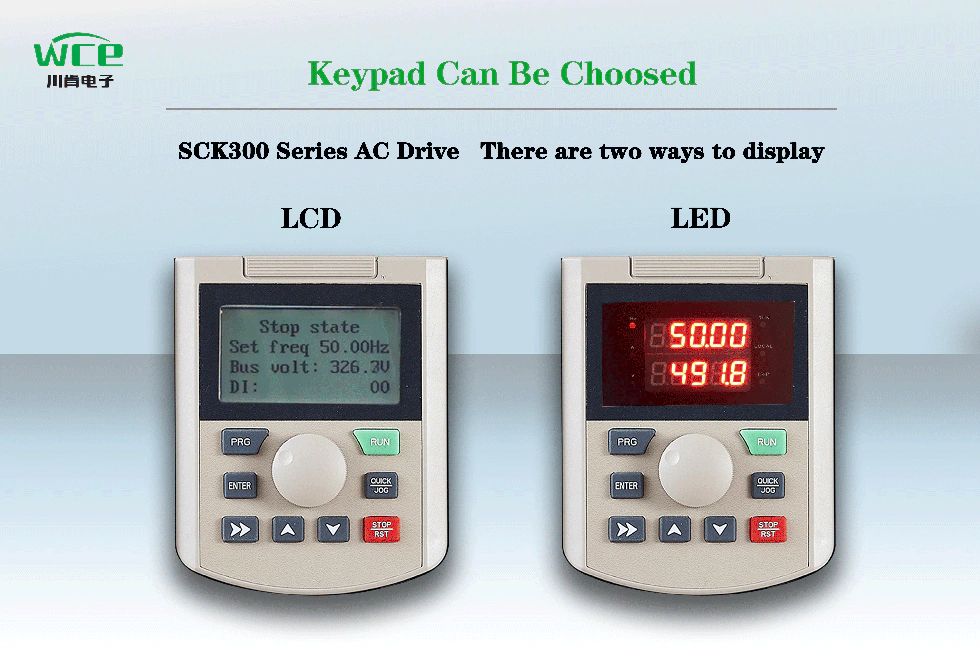

LCD Displays Multiple Lingua Text and Graphics, DUXERIT Display numero, magis intuitive, secundum ad preferences

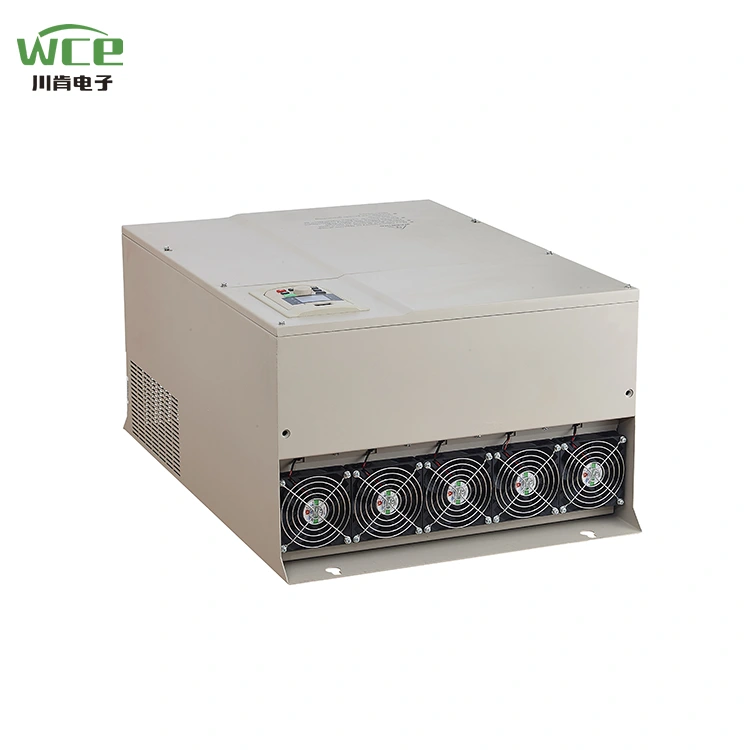

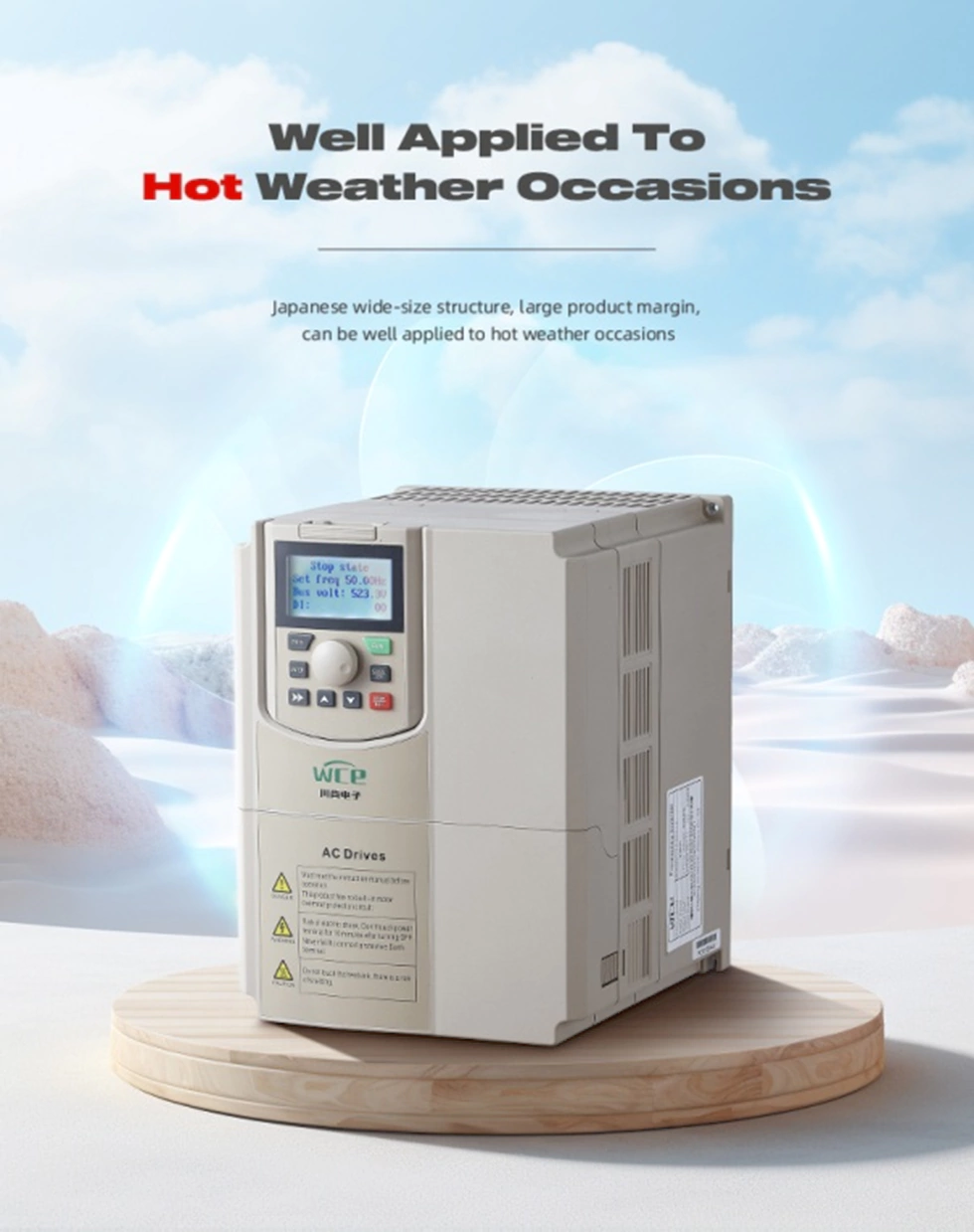

VFD Volume magna structuram, maius radiator, uber USUS rate, potest operari Northmanni in calidum amet ut tropical.

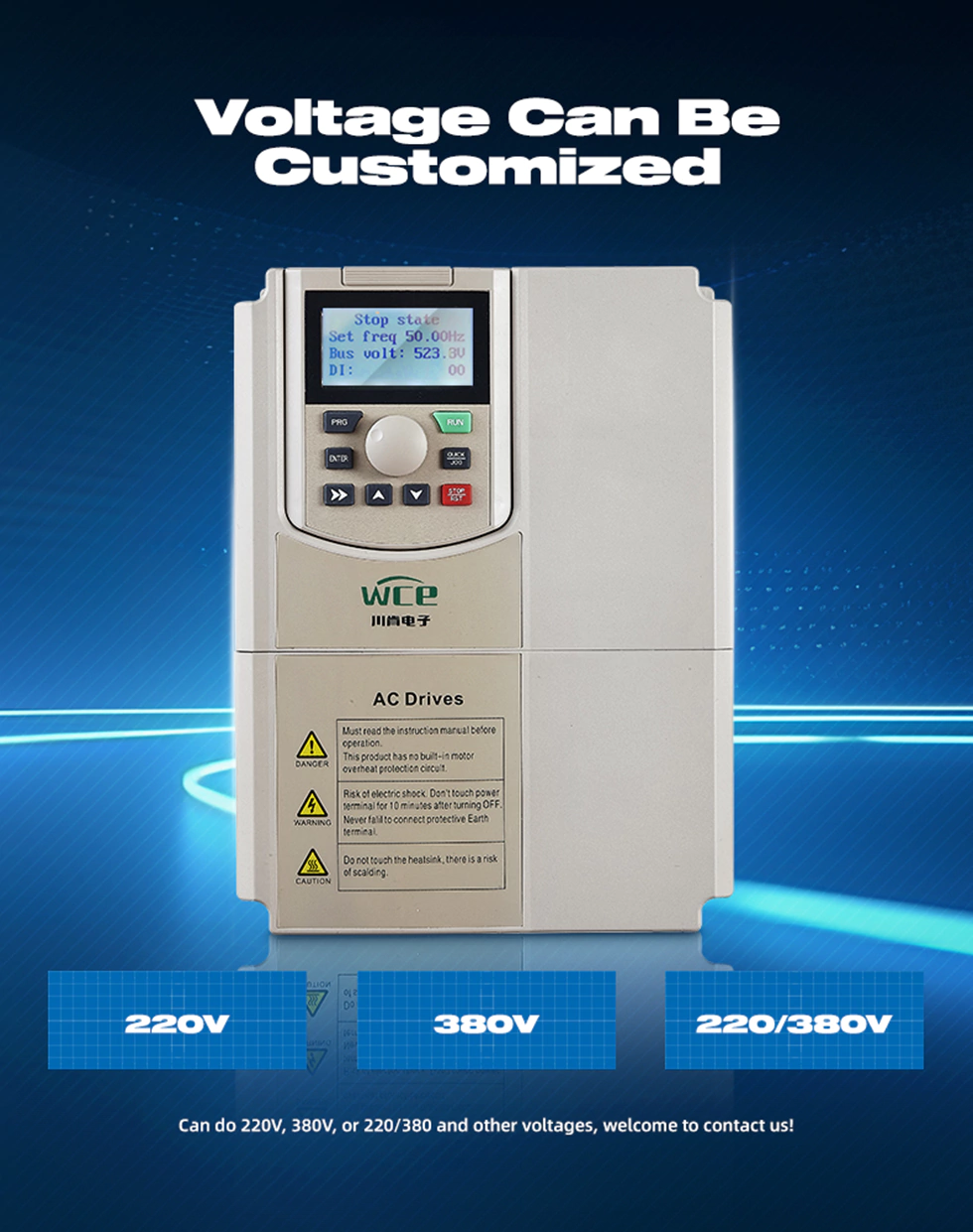

Variis genera initus et output modos potest esse customized:

3880V initus ad 3pv 3p 3pv output.

2. 3p220v input ad 3p220v output.

3 3p660v input ad 3p660v output.

4. 1P220v initus ad 3p 3pvv output.

V. 1P220v initus ad 3P220V output.

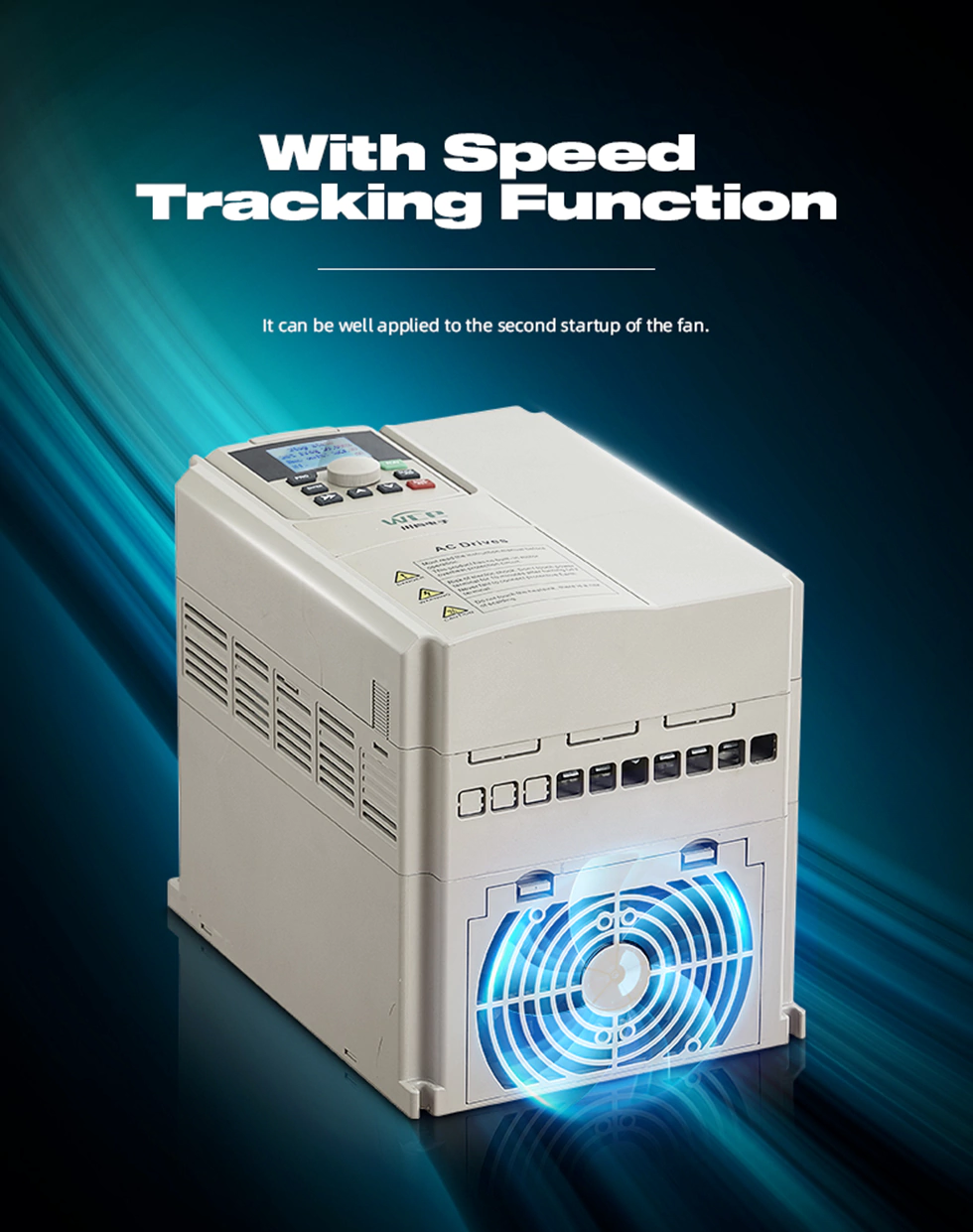

Cum celeritate tracking munus, potest melius duplex satus.

Venit cum modbus rteu communicationis et potest etiam effectum deducendi modbum tcp, PRPFibus et profinet addendo expansion pecto.

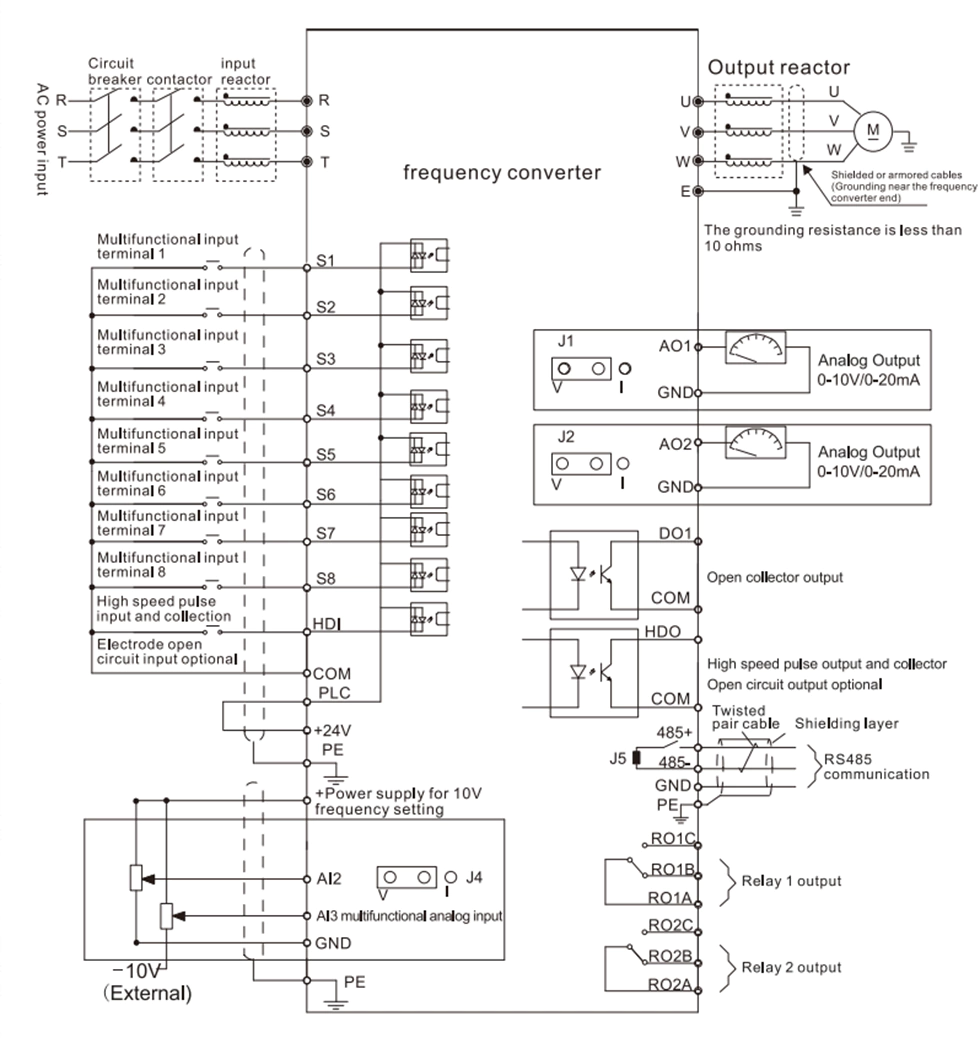

VFD Wiring Diagram.
